Verifying that the Yeastar TG200 has LTE radios

Verifying that the Yeastar TG200 has LTE radios

The Yeastar TG200 has 2 cellular radios. These cellular radios can be activated by inserting a SIM card into either of the 2 SIM slots on the front of the device.
Older TG200 models are 3G and do not support newer GSM LTE SIMs (AT&T, T-Mobile, ...).  The following steps will allow you to check the model of the radios in the Yeastar to verify that they support LTE.
Notes
Note:  TopView 7.4 and later include a utility to verify LTE radios. This utility requires that SSH is enabled in the TG200 (first step below).
TopView Configurator: Tools > Support apps > Yeastar TG200 LTE Check

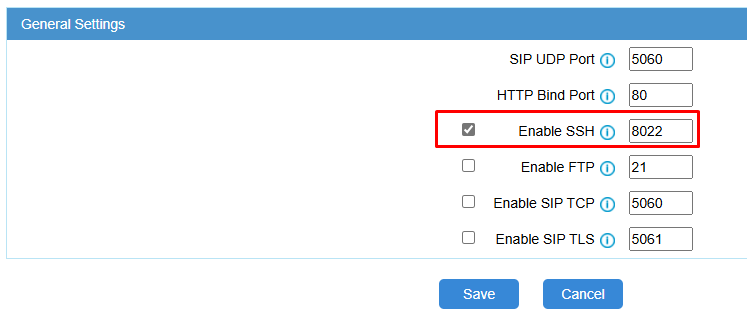

Enable SSH on the TG200 device

Log into the Web interface of the TG200
System > Security center
Check "Enable SSH", then [Save] and [Apply changes]

Notes
When you save the change, the SSH password will be displayed. The default password is iyeastar. You will need this password to log into the Yeastar via SSH.

Install an SSH client (PuTTY)

This article uses PuTTY as the SSH client. Download PuTTY

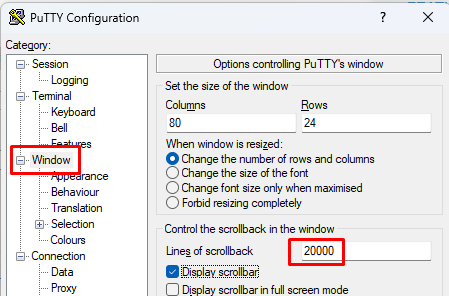

PuTTY setting (optional)

Increase the scrollback count to increase the number of lines in the terminal window

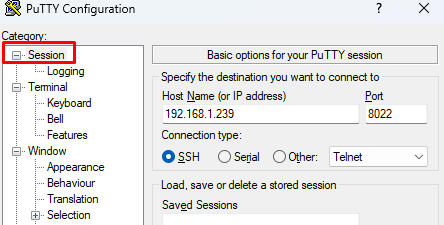

SSH Client settings:

  1. Host name: the IP address of the TG200
  2. Port: 8022 (this is the default port for SSH and is displayed on the screen where you enabled SSH)
  3. Connection type: SSH

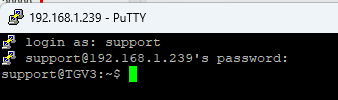

Launch the SSH client and log in

If using PuTTY, click the [Open] button
Username: support
Password: iyeastar


SSH Commands

Notes
If using PuTTy, you can paste in a command by right-clicking on the terminal window

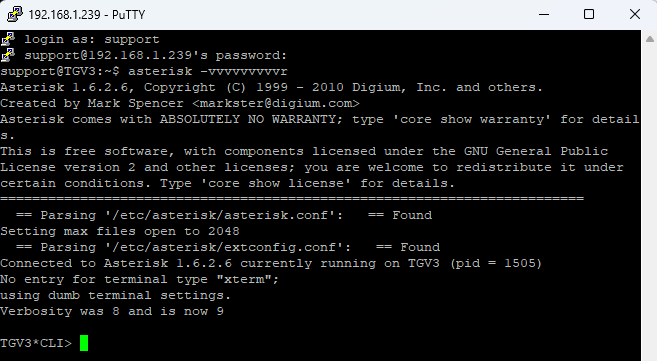

Change to asterisk mode

asterisk -vvvvvvvvvr


List the radios

gsm show spans
Each radio will be displayed with a span number

Verify the radio is LTE

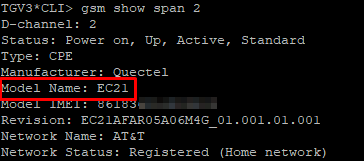

gsm show span x
where x is one of the displayed span numbers


Compare the displayed model name to this list to determine if it is LTE:
  1. 2G modules(GSM): SIM800, M35
  2. 3G modules(UMTS): UC15
  3. 4G modules(LTE): EC20, EC21, EC25
